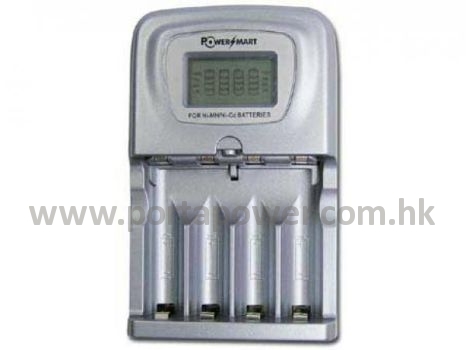

Description

- Compact charger with AC Adapter / DC Car Cord.
- Equipped with 4 independent charging channels for charge 1-4 pcs AA / AAA Ni-MH or Ni-Cd rechargeable batteries.
- Ni-MH and Ni-Cd batteries can be mixed to charge at the same time.
- LED screen shows the charging status when you insert the rechargeable batteries:
- Build-in protection circuit - over-charge, over-discharge, over-current, over-temperature, short circuit protection,
- Intelligent microprocessor controlled with negative delta V (- delta V) automatic cut-off function.
- Immediate recognition of defective or poor batteries.

Technical Specifications

Model	AVCD
Color	Blue
Input Voltage	DC 12V
Input Current	1.5A
Output Voltage	DC 1.5V
Output Current	1.6A for AA size 0.8A for AAA size
Size	69.70 x 29.00 x 110.00mm
Weight	102.4g
Included In Standard Package	- AVCD Charger - AC Adapter - DC Car Cord
Built-in Protect Circuit	- Over-charge - Over-discharge - Over-current - Over-temperature - Short circuit protection

Approximate Charge time for rechargeable batteries

Size	Capacity	Charging time ( 1-4 ) PCS
AA AA AAA AAA	2400mAh 1800mAh 750mAh 650mAh	130min 90min 65min 60min

Charger Operation

(A) Charging method

The AVCD Universal Battery Charger have two charging methods: AC Adapter or Car cord,
they allow you to charge your batteries at home or in the car conveniently.

(B) How to use the charger

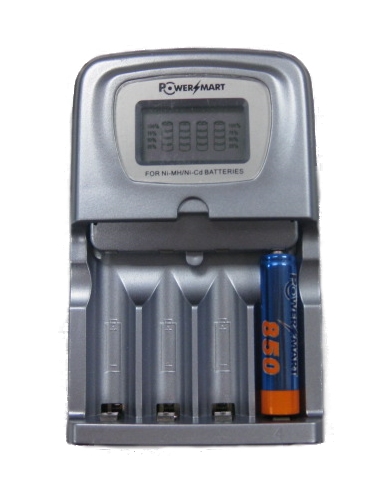

• Place 1 to 4 pcs AA / AAA Ni-MH or Ni-Cd rechargeable batteries into the charger independently with correct "+" and "-"
  indication on each battery compartment.

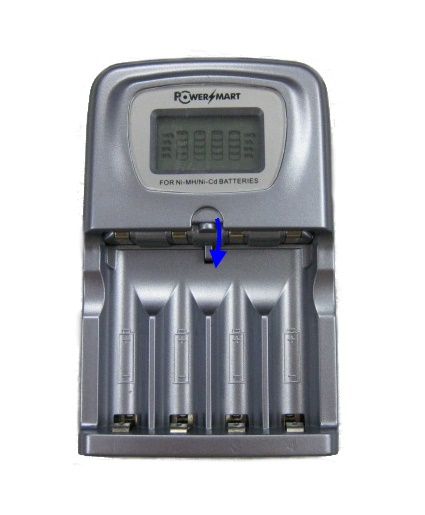

• If charging AAA cells, please pull down the contact plate.


  (a)	(b)

• Connect the AC adapter or car cord to the charger's power input jack.

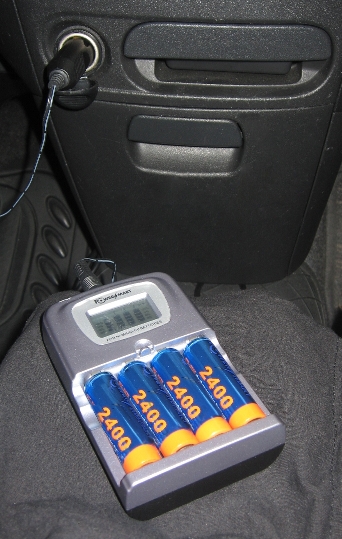

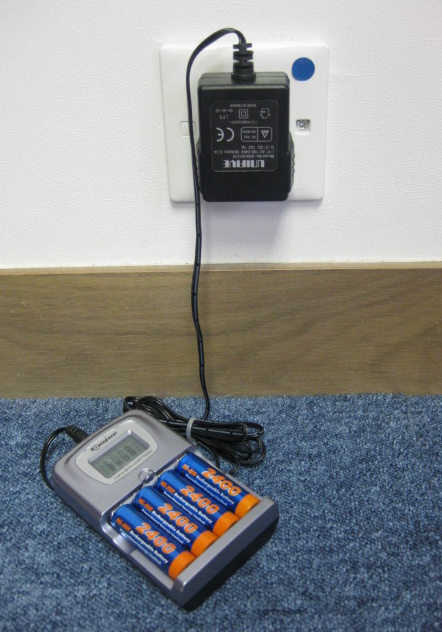

• Plug the AC adapter in a wall outlet or the car cord to the autombile cigarette socket, the backlight will turn on.
• Backlight will keep lighted during charging process.
• Backlight will turn off after 1 minute when
  - empty charger is connected to AC outlet
  - battery charging is completed
• The fuel gauges in the LCD screen are full, the batteries are ready to be used, take the battery out and unplug the input power.

(C) Check the charging status

LCD screen shows the charging status when you insert the rechargeable batteries:

Indicator	Status

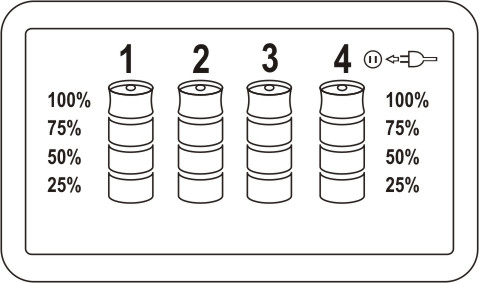

	(1) Connect the Power Supply The AC adapter connection icon and charging channel number will show on LCD display.

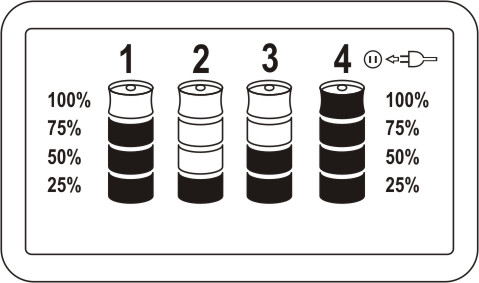

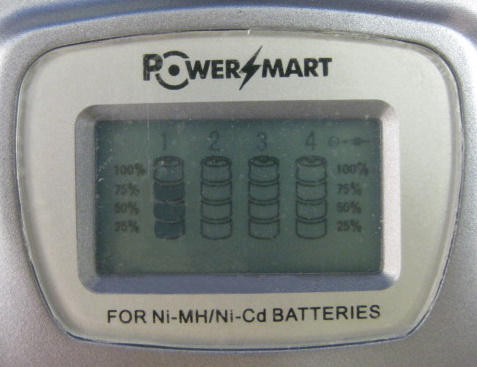

	(2) Charging Process The LCD display will show the charging rate bars below the channel number icons.

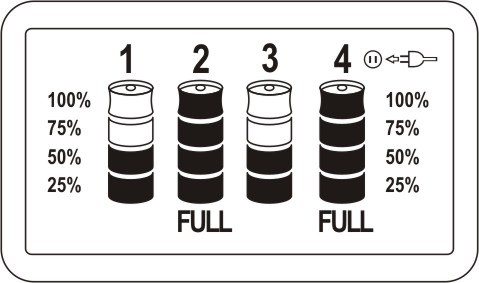

	(3) Fully Charged The word "FULL" will show under the charging rate bar.

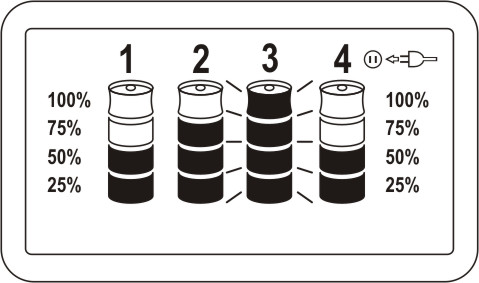

	(4) Bad Battery When the charging rate bar flashs, it means the battery is broken.

Caution

- Do not charge any other type of battery cells beside Ni-Cd & Ni-MH. Otherwise, the batteries may explode causing personal injury and damage.
- Do not expose the charger to rain or moisture, never immerse the unit.
- Do not store the charger where it may be exposed to high temperature and high humidity, avoid placing in direct sunlight, for indoor use only.
- Do not use the charger inside a drawer or closed cabinet, or cover with a cloth. Use in the well ventilation environment.
  The charger will become slighty warm in use.
- Do not attempt to open the charger.
- Do not short curcuit the battery terminals.
- Do not operate the charger if it appears damaged in any way.
- Place the batteries with positive tip (+) facing top, incorrect polarity may cause fire or explsion.
- If the charger must be cleaned, be sure it is unplugged, and then wipe the body of the unit with a clean cloth lightly dampened
  with mild detergent or alcohol.

User Manual
