Specification
Product Code
AVMP60








Combo Set
Product Code Weight (g)
AVMP60A 663.7
AVMP60AZ 629.2
AVMP60E 657.2
AVMP60EZ 622.7
AVMP60K 657.7
AVMP60KZ 623.2
AVMP60P 115
AVMP60SA 243
AVMP60SAZ 208.5
AVMP60SE 219.4
AVMP60SEZ 184.9
AVMP60SJ 230.8
AVMP60SJZ 196.3
AVMP60SK 236.65
AVMP60SKZ 202.15
AVMP60SU 214.4
AVMP60SUZ 179.9
AVMP60U 576.1
AVMP60UZ 541.6
Compatible
FUJIFILM
BC-60 BC-65 P10N072180A
P10N073780A
PENTAX
D-BC2
RICOH
BJ-2
Fit Model
Camcorder Battery Chargers
TOSHIBA
NP-60
Digital Camera Battery Chargers
CASIO
NP-30 NP-30DBA
PENTAX
D-LI2
FUJIFILM
NP-60
RICOH
DB-40
CREATIVE
NP-60
HP
A1812A L1812A L1812B
Photosmart R07 Q2232-80001
OLYMPUS
LI-20B
TOSHIBA
PDR-BT3
PANASONIC
CGA-S301 CGA-S302A CGA-S302A/1B
CGA-S302E/1B VW-VBA10 VW-VBA20
VW-VBA21
SAMSUNG
SLB-1037 SLB-1137
KODAK
KLIC-5000
YAESU
FNB-82LI
SONY
COMA-BP1


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual

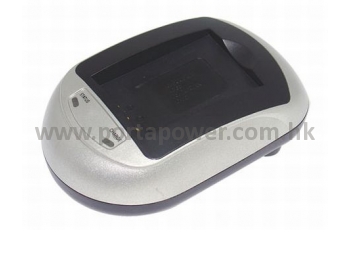

Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

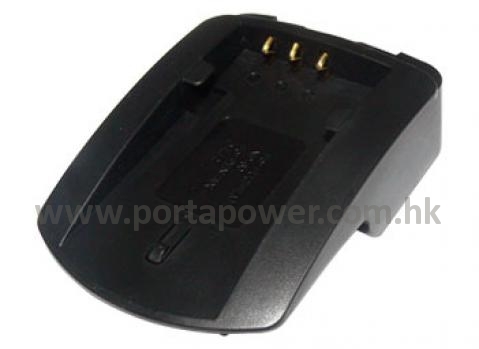

Charger Plate
AVP60
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP60A AVMP + AVP60 + CAMP + AVMPA
AVMP60AZ AVMP + AVP60 + AVMPA
AVMP60E AVMP + AVP60 + CAMP + AVMPE
AVMP60EZ AVMP + AVP60 + AVMPE
AVMP60K AVMP + AVP60 + CAMP + AVMPK
AVMP60SJ AVMP + AVP60 + CAMP + AVMPSJ
AVMP60SJZ AVMP + AVP60 + AVMPSJ
AVMP60KZ AVMP + AVP60 + AVMPK
AVMP60P AVMP + AVP60 + CAMP
AVMP60SA AVMP + AVP60 + CAMP + AVMPSA
AVMP60SAZ AVMP + AVP60 + AVMPSA
AVMP60SE AVMP + AVP60 + CAMP + AVMPSE
AVMP60SEZ AVMP + AVP60 + AVMPSE
AVMP60SK AVMP + AVP60 + CAMP + AVMPSK
AVMP60SKZ AVMP + AVP60 + AVMPSK
AVMP60SU AVMP + AVP60 + CAMP + AVMPSU
AVMP60SUZ AVMP + AVP60 + AVMPSU
AVMP60U AVMP + AVP60 + CAMP + AVMPU
AVMP60UZ AVMP + AVP60 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
