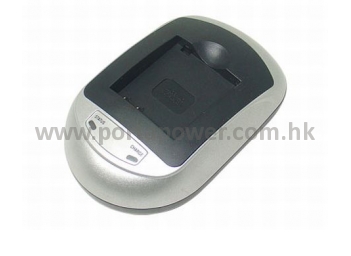

Specification
Product Code
AVMP168








Combo Set
Product Code Weight (g)
AVMP168A 663.7
AVMP168AZ 629.2
AVMP168E 657.2
AVMP168EZ 622.7
AVMP168K 657.7
AVMP168KZ 623.2
AVMP168P 115
AVMP168SA 243
AVMP168SAZ 208.5
AVMP168SE 219.4
AVMP168SEZ 184.9
AVMP168SJ 230.8
AVMP168SJZ 196.3
AVMP168SK 236.65
AVMP168SKZ 202.15
AVMP168SU 214.4
AVMP168SUZ 179.9
AVMP168U 576.1
AVMP168UZ 541.6
Compatible
PANASONIC
DE-A39A DE-A39A
PENTAX
D-BC106
RICOH
BJ-7
Fit Model
Camcorder Battery Chargers
PANASONIC
VW-VBJ10 VW-VBJ10E-K VW-VBJ10GK
Digital Camera Battery Chargers
RICOH
DB-70
LEICA
BP-DC6 BP-DC6-E BP-DC6-J
BP-DC6-U
PANASONIC
CGA-S008A CGA-S008A/1B CGA-S008E
CGA-S008E/1B DMW-BCE10 DMW-BCE10E


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual


Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

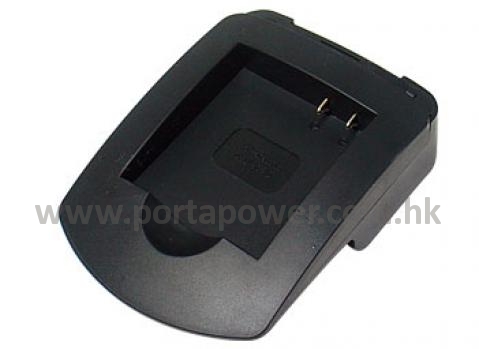

Charger Plate
AVP168
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP168A AVMP + AVP168 + CAMP + AVMPA
AVMP168AZ AVMP + AVP168 + AVMPA
AVMP168E AVMP + AVP168 + CAMP + AVMPE
AVMP168EZ AVMP + AVP168 + AVMPE
AVMP168K AVMP + AVP168 + CAMP + AVMPK
AVMP168SJ AVMP + AVP168 + CAMP + AVMPSJ
AVMP168SJZ AVMP + AVP168 + AVMPSJ
AVMP168KZ AVMP + AVP168 + AVMPK
AVMP168P AVMP + AVP168 + CAMP
AVMP168SA AVMP + AVP168 + CAMP + AVMPSA
AVMP168SAZ AVMP + AVP168 + AVMPSA
AVMP168SE AVMP + AVP168 + CAMP + AVMPSE
AVMP168SEZ AVMP + AVP168 + AVMPSE
AVMP168SK AVMP + AVP168 + CAMP + AVMPSK
AVMP168SKZ AVMP + AVP168 + AVMPSK
AVMP168SU AVMP + AVP168 + CAMP + AVMPSU
AVMP168SUZ AVMP + AVP168 + AVMPSU
AVMP168U AVMP + AVP168 + CAMP + AVMPU
AVMP168UZ AVMP + AVP168 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
