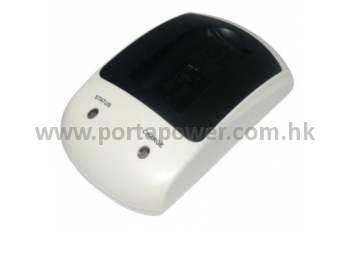

The AVNS charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use, only to change the plate which is located on the top of the charger.
(A) How to change the charger plate
Part I : Release the charger plate
Step 1:
Press the buttons, located on the bottom of the charger.
Step 2:
Charger plate release from the base.
Step 3:
Took out the plate.
Part II : Install the new charger plate

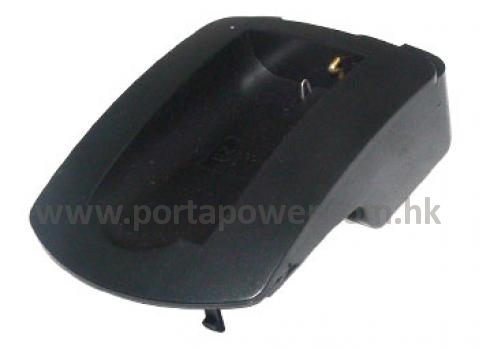

Step 1: Ready a new charger plate.
Step 2:
Install the front into the charger base and press the end down to the base.
Step 3:
Complete the installation.
(B) Charging method
AVNS Charger can be used with AC Adapter only.
(C) Check the charging status
The LED indicator will show for you the charging status.
Here are the steps for using the charger
1. Plug the AC Adapter into the wall outlet.
2. Connect the AC Adapter to the charger DC in-jack.
3."Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Slide battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
6. After the battery pack fully charged, slide the battery pack out from the charger and unplug the charger from the outlet.
