Digital Camera Battery Chargers
Replacement Digital Camera Battery Chargers
Specification
Product Code
AVMP410








Combo Set
Product Code Weight (g)
AVMP410A 663.7
AVMP410AZ 629.2
AVMP410E 657.2
AVMP410EZ 622.7
AVMP410K 657.7
AVMP410KZ 623.2
AVMP410P 115
AVMP410SA 243
AVMP410SAZ 208.5
AVMP410SE 219.4
AVMP410SEZ 184.9
AVMP410SJ 230.8
AVMP410SJZ 196.3
AVMP410SK 236.65
AVMP410SKZ 202.15
AVMP410SU 214.4
AVMP410SUZ 179.9
AVMP410U 576.1
AVMP410UZ 541.6
Compatible
SANYO
VAR-L40 VAR-L40U
Fit Model
Digital Camera Battery Chargers
SANYO
DB-L40 DB-L40AEX DB-L40AU


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual

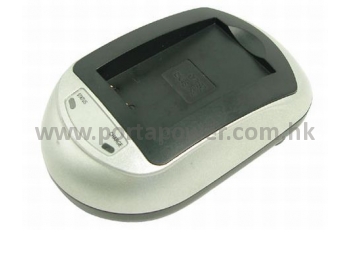

Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

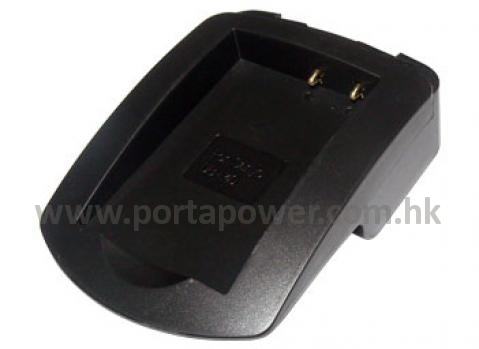

Charger Plate
AVP410
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP410A AVMP + AVP410 + CAMP + AVMPA
AVMP410AZ AVMP + AVP410 + AVMPA
AVMP410E AVMP + AVP410 + CAMP + AVMPE
AVMP410EZ AVMP + AVP410 + AVMPE
AVMP410K AVMP + AVP410 + CAMP + AVMPK
AVMP410SJ AVMP + AVP410 + CAMP + AVMPSJ
AVMP410SJZ AVMP + AVP410 + AVMPSJ
AVMP410KZ AVMP + AVP410 + AVMPK
AVMP410P AVMP + AVP410 + CAMP
AVMP410SA AVMP + AVP410 + CAMP + AVMPSA
AVMP410SAZ AVMP + AVP410 + AVMPSA
AVMP410SE AVMP + AVP410 + CAMP + AVMPSE
AVMP410SEZ AVMP + AVP410 + AVMPSE
AVMP410SK AVMP + AVP410 + CAMP + AVMPSK
AVMP410SKZ AVMP + AVP410 + AVMPSK
AVMP410SU AVMP + AVP410 + CAMP + AVMPSU
AVMP410SUZ AVMP + AVP410 + AVMPSU
AVMP410U AVMP + AVP410 + CAMP + AVMPU
AVMP410UZ AVMP + AVP410 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
