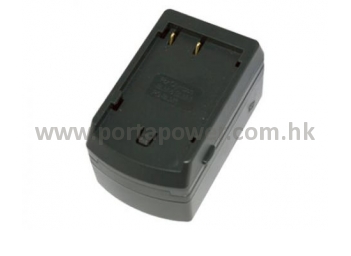

The ACMPB charger is for PDA, video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use, only to change the plate which is located on the top of the charger.
(A) How to change the charger plate
Part I : Release the charger plate
Step 1:

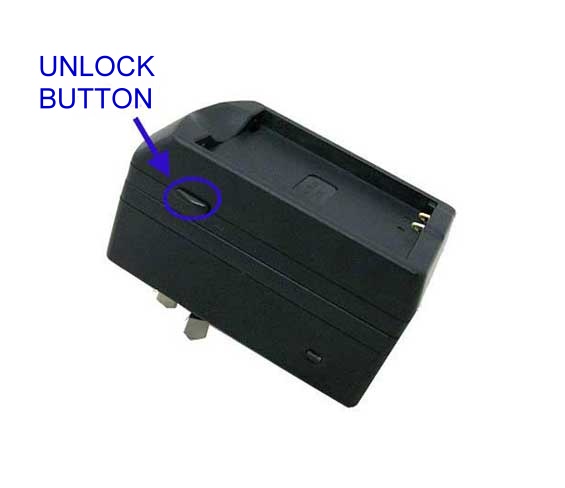

Press and hold the button to unlock the charger plate.
Step 2:
Pull out to release the charger plate.
Step 3:
Took out the plate.
Part II : Install the new charger plate
Step 1:

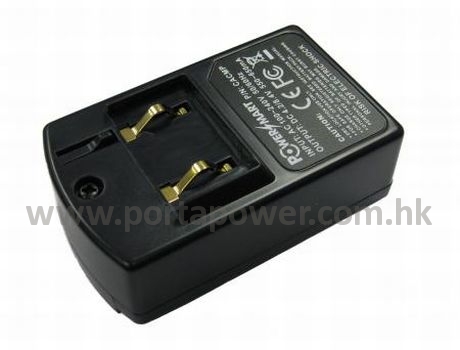

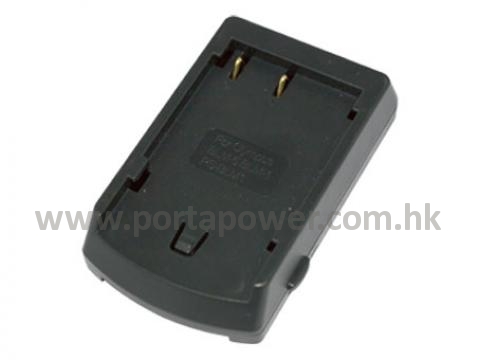

Ready a new charger plate, and attach the charger plate on the top of charger base.
Step 2:
Push the charger plate in with the direction show on the above figure.
Step 3:
Complete the installation.
(B) Charging method
1. Choose a correct input plug.
2. Install input plug to the bottom of charger base.
3. Plug the charger in a wall outlet and start to charge your battery.
(C) Check the charging status
The LED indicator will show for you the charging status.
Here are the steps for using the charger
1. Choose a correct input plug and install to the bottom of charger base..
2. Plug the Charger into wall outlet..
3. The LED indicator show flashing GREEN when waiting for battery pack.
4. Slide battery pack into the charger, the LED indicator turns RED when charging.
5. LED indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out from the charger and unplug the charger from the outlet.
