Digital Camera Battery Chargers
Replacement Digital Camera Battery Chargers
Specification
Product Code
AVMP17








Combo Set
Product Code Weight (g)
AVMP17A 663.7
AVMP17AZ 629.2
AVMP17E 657.2
AVMP17EZ 622.7
AVMP17K 657.7
AVMP17KZ 623.2
AVMP17P 115
AVMP17SA 243
AVMP17SAZ 208.5
AVMP17SE 219.4
AVMP17SEZ 184.9
AVMP17SJ 230.8
AVMP17SJZ 196.3
AVMP17SK 236.65
AVMP17SKZ 202.15
AVMP17SU 214.4
AVMP17SUZ 179.9
AVMP17U 576.1
AVMP17UZ 541.6
Compatible
PANASONIC
DE-929A DE-929B
Fit Model
Digital Camera Battery Chargers
LEICA
BP-DC2
PANASONIC
CGA-S001 CGA-S001A/1B CGA-S001E
CGA-S001E/1B CGR-S001 DMW-BCA7

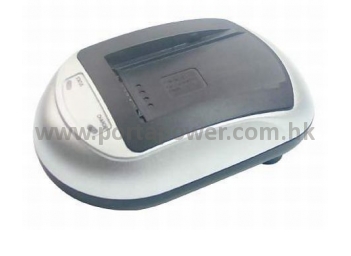

Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual


Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

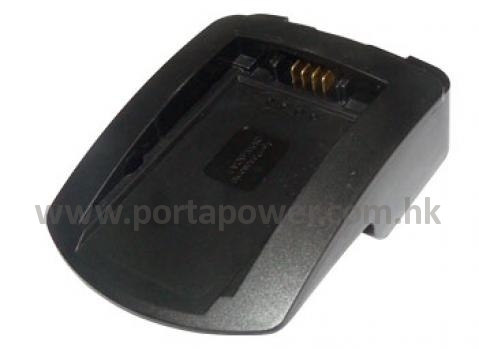

Charger Plate
AVP17
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP17A AVMP + AVP17 + CAMP + AVMPA
AVMP17AZ AVMP + AVP17 + AVMPA
AVMP17E AVMP + AVP17 + CAMP + AVMPE
AVMP17EZ AVMP + AVP17 + AVMPE
AVMP17K AVMP + AVP17 + CAMP + AVMPK
AVMP17SJ AVMP + AVP17 + CAMP + AVMPSJ
AVMP17SJZ AVMP + AVP17 + AVMPSJ
AVMP17KZ AVMP + AVP17 + AVMPK
AVMP17P AVMP + AVP17 + CAMP
AVMP17SA AVMP + AVP17 + CAMP + AVMPSA
AVMP17SAZ AVMP + AVP17 + AVMPSA
AVMP17SE AVMP + AVP17 + CAMP + AVMPSE
AVMP17SEZ AVMP + AVP17 + AVMPSE
AVMP17SK AVMP + AVP17 + CAMP + AVMPSK
AVMP17SKZ AVMP + AVP17 + AVMPSK
AVMP17SU AVMP + AVP17 + CAMP + AVMPSU
AVMP17SUZ AVMP + AVP17 + AVMPSU
AVMP17U AVMP + AVP17 + CAMP + AVMPU
AVMP17UZ AVMP + AVP17 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
