Welcome!
Digital Camera Battery Chargers
Replacement Digital Camera Battery Chargers
Specification
Product Code
AVMP80








Combo Set
Product Code Weight (g)
AVMP80A 663.7
AVMP80AZ 629.2
AVMP80E 657.2
AVMP80EZ 622.7
AVMP80K 657.7
AVMP80KZ 623.2
AVMP80P 115
AVMP80SA 243
AVMP80SAZ 208.5
AVMP80SE 219.4
AVMP80SEZ 184.9
AVMP80SJ 230.8
AVMP80SJZ 196.3
AVMP80SK 236.65
AVMP80SKZ 202.15
AVMP80SU 214.4
AVMP80SUZ 179.9
AVMP80U 576.1
AVMP80UZ 541.6
Compatible
FUJIFILM
43855109 BC-80 N071470A
P10N071470A
Fit Model
Digital Camera Battery Chargers
EPSON
B32B818232 B32B818233 EPALB1
EU-85
FUJIFILM
NP-100 NP-80
LEICA
NP-80
RICOH
DB-20 DB-20L
TOSHIBA
NP-100 PDR-BT1 PDR-BT2
PDR-BT2A
KYOCERA
BP-1100
JVC
BN-V101 BN-V101E DDNP-100
KODAK
KLIC-3000


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual

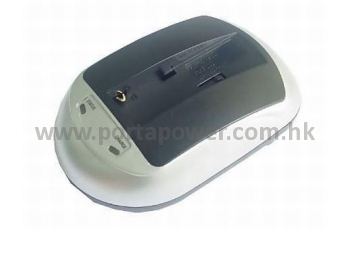

Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

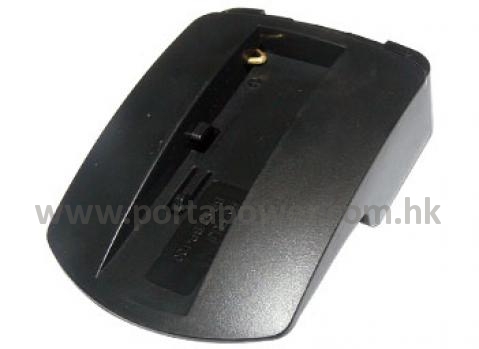

Charger Plate
AVP80
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP80A AVMP + AVP80 + CAMP + AVMPA
AVMP80AZ AVMP + AVP80 + AVMPA
AVMP80E AVMP + AVP80 + CAMP + AVMPE
AVMP80EZ AVMP + AVP80 + AVMPE
AVMP80K AVMP + AVP80 + CAMP + AVMPK
AVMP80SJ AVMP + AVP80 + CAMP + AVMPSJ
AVMP80SJZ AVMP + AVP80 + AVMPSJ
AVMP80KZ AVMP + AVP80 + AVMPK
AVMP80P AVMP + AVP80 + CAMP
AVMP80SA AVMP + AVP80 + CAMP + AVMPSA
AVMP80SAZ AVMP + AVP80 + AVMPSA
AVMP80SE AVMP + AVP80 + CAMP + AVMPSE
AVMP80SEZ AVMP + AVP80 + AVMPSE
AVMP80SK AVMP + AVP80 + CAMP + AVMPSK
AVMP80SKZ AVMP + AVP80 + AVMPSK
AVMP80SU AVMP + AVP80 + CAMP + AVMPSU
AVMP80SUZ AVMP + AVP80 + AVMPSU
AVMP80U AVMP + AVP80 + CAMP + AVMPU
AVMP80UZ AVMP + AVP80 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
