Camcorder Battery Chargers
Replacement Camcorder Battery Chargers
Specification
Product Code
AVMP120








Combo Set
Product Code Weight (g)
AVMP120A 663.7
AVMP120AZ 629.2
AVMP120E 657.2
AVMP120EZ 622.7
AVMP120K 657.7
AVMP120KZ 623.2
AVMP120P 115
AVMP120SA 243
AVMP120SAZ 208.5
AVMP120SE 219.4
AVMP120SEZ 184.9
AVMP120SJ 230.8
AVMP120SJZ 196.3
AVMP120SK 236.65
AVMP120SKZ 202.15
AVMP120SU 214.4
AVMP120SUZ 179.9
AVMP120U 576.1
AVMP120UZ 541.6
Compatible
LEICA
EBC-DC1
PANASONIC
AG-B15 AG-B15E AG-B15P
PV-DAC11 PV-DAC11-K PV-DAC11A
PV-DAC11A-K PV-DAC11C VW-AD7
VW-AD9 VW-AD9A VW-AD9B
VW-AD9E VW-AD9E/B VW-KBD2
VW-KBD2E
Fit Model
Camcorder Battery Chargers
PANASONIC
CGA-D07S CGA-D54 CGA-D54D
CGA-D54S CGA-D54SE CGA-D54SE/1B
CGA-D54SE/1H CGP-D110 CGP-D14
CGP-D14S CGP-D210 CGP-D28
CGP-D28A/1B CGP-D28S CGP-D28SE/1B
CGP-D320 CGP-D320T1B CGP-D54S
CGR-D08 CGR-D08A/1B CGR-D08R
CGR-D08S CGR-D08SE/1B CGR-D120
CGR-D120A/1B CGR-D120E/1B CGR-D120T
CGR-D14 CGR-D14S CGR-D16
CGR-D16A/1B CGR-D16S CGR-D16SE/1B
CGR-D210 CGR-D220 CGR-D220A
CGR-D220A/1B CGR-D220E/1B CGR-D28A/1B
CGR-D28S CGR-D320 CGR-D320A/1B
CGR-D320E/1B CGR-D54S VBS0419
VSB0418 VW-VBD21 VW-VBD22
VW-VBD25 VW-VBD33 VW-VBD35
VW-VBD40 VW-VBD55
HITACHI
DZ-BP14 DZ-BP14R DZ-BP16
DZ-BP28
Digital Camera Battery Chargers
LEICA
BP-DC1 BP-DC3 BP-DC3 E
BP-DC3 J BP-DC3 U
PANASONIC
CGR-S602 CGR-S602A CGR-S602A/1B
CGR-S602E/1B CGR-S602SE CGR-S603A/1B
DMW-BL14

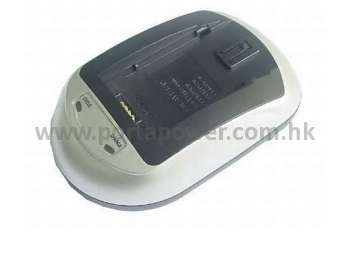

Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual


Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

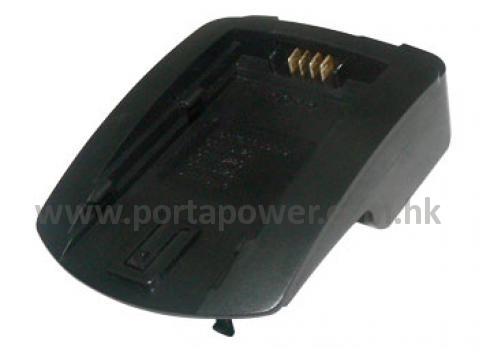

Charger Plate
AVP120
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP120A AVMP + AVP120 + CAMP + AVMPA
AVMP120AZ AVMP + AVP120 + AVMPA
AVMP120E AVMP + AVP120 + CAMP + AVMPE
AVMP120EZ AVMP + AVP120 + AVMPE
AVMP120K AVMP + AVP120 + CAMP + AVMPK
AVMP120SJ AVMP + AVP120 + CAMP + AVMPSJ
AVMP120SJZ AVMP + AVP120 + AVMPSJ
AVMP120KZ AVMP + AVP120 + AVMPK
AVMP120P AVMP + AVP120 + CAMP
AVMP120SA AVMP + AVP120 + CAMP + AVMPSA
AVMP120SAZ AVMP + AVP120 + AVMPSA
AVMP120SE AVMP + AVP120 + CAMP + AVMPSE
AVMP120SEZ AVMP + AVP120 + AVMPSE
AVMP120SK AVMP + AVP120 + CAMP + AVMPSK
AVMP120SKZ AVMP + AVP120 + AVMPSK
AVMP120SU AVMP + AVP120 + CAMP + AVMPSU
AVMP120SUZ AVMP + AVP120 + AVMPSU
AVMP120U AVMP + AVP120 + CAMP + AVMPU
AVMP120UZ AVMP + AVP120 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
