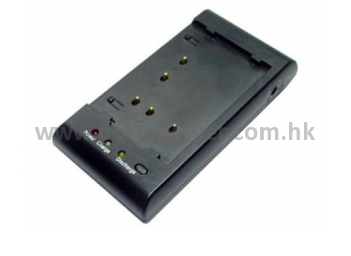

Battery Charger Description

The AVHM charger is compatible for video camcorder and digital camera Ni-CD & Ni-MH batteries. It is suitable for different battery models to use,

only to change the plate which is located on the top of the charger.

(A) How to Install the battery.

Step 1: Confirm both of the battery and charger contacts are in the same position. Step 2: Install the battery on the charger and push it untill to lock. Step 3: Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.

Method 1: Power by AC Power Adapter Method 2: Power by DC Car Cord



(C) Check the charging status

The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.

2. Connect the AC Adapter or car cord to the charger DC in-jack.

3. The "Power" LED indicator show RED when waiting for battery pack.

4. Slide battery pack into the charger and press Discharge button to discharge the battery. The "Discharge" LED indicator will glow Orange.

5. When the battery is fully discharged, the charger will switch automatically to charge the battery. The "charge" LED indicator

will flashes RED when charging, and "Discharge" LED indicator will not glow.

6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.

7. After the battery pack fully charged, slide the battery pack out from the charger and disconnect the power adapter from the outlet.
