Camcorder Battery Chargers
Replacement Camcorder Battery Chargers
Specification
Product Code
AVMP610








Combo Set
Product Code Weight (g)
AVMP610A 663.7
AVMP610AZ 629.2
AVMP610E 657.2
AVMP610EZ 622.7
AVMP610K 657.7
AVMP610KZ 623.2
AVMP610P 115
AVMP610SA 243
AVMP610SAZ 208.5
AVMP610SE 219.4
AVMP610SEZ 184.9
AVMP610SJ 230.8
AVMP610SJZ 196.3
AVMP610SK 236.65
AVMP610SKZ 202.15
AVMP610SU 214.4
AVMP610SUZ 179.9
AVMP610U 576.1
AVMP610UZ 541.6
Compatible
PANASONIC
VW-AS7 VW-KBC7E
Fit Model
Camcorder Battery Chargers
PANASONIC
CGR-V114S CGR-V14 CGR-V14S
CGR-V14SE CGR-V14SE/1B CGR-V26S
CGR-V26SE/1B CGR-V610 CGR-V610E/1B
CGR-V620 CGR-V620E/1B CGR-V620T
CGR-V620T/1B


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual


Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

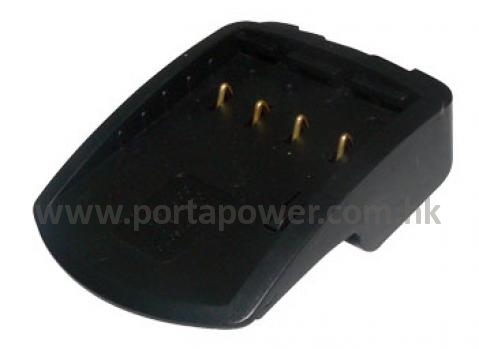

Charger Plate
AVP610
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP610A AVMP + AVP610 + CAMP + AVMPA
AVMP610AZ AVMP + AVP610 + AVMPA
AVMP610E AVMP + AVP610 + CAMP + AVMPE
AVMP610EZ AVMP + AVP610 + AVMPE
AVMP610K AVMP + AVP610 + CAMP + AVMPK
AVMP610SJ AVMP + AVP610 + CAMP + AVMPSJ
AVMP610SJZ AVMP + AVP610 + AVMPSJ
AVMP610KZ AVMP + AVP610 + AVMPK
AVMP610P AVMP + AVP610 + CAMP
AVMP610SA AVMP + AVP610 + CAMP + AVMPSA
AVMP610SAZ AVMP + AVP610 + AVMPSA
AVMP610SE AVMP + AVP610 + CAMP + AVMPSE
AVMP610SEZ AVMP + AVP610 + AVMPSE
AVMP610SK AVMP + AVP610 + CAMP + AVMPSK
AVMP610SKZ AVMP + AVP610 + AVMPSK
AVMP610SU AVMP + AVP610 + CAMP + AVMPSU
AVMP610SUZ AVMP + AVP610 + AVMPSU
AVMP610U AVMP + AVP610 + CAMP + AVMPU
AVMP610UZ AVMP + AVP610 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
