Camcorder Battery Chargers
Replacement Camcorder Battery Chargers
Specification
Product Code
AVMP882








Combo Set
Product Code Weight (g)
AVMP882A 663.7
AVMP882AZ 629.2
AVMP882E 657.2
AVMP882EZ 622.7
AVMP882K 657.7
AVMP882KZ 623.2
AVMP882P 115
AVMP882SA 243
AVMP882SAZ 208.5
AVMP882SE 219.4
AVMP882SEZ 184.9
AVMP882SJ 230.8
AVMP882SJZ 196.3
AVMP882SK 236.65
AVMP882SKZ 202.15
AVMP882SU 214.4
AVMP882SUZ 179.9
AVMP882U 576.1
AVMP882UZ 541.6
Compatible
SAMSUNG
AA-M2DG AA-M2DG
Fit Model
Camcorder Battery Chargers
SAMSUNG
SB-LH82
Digital Camera Battery Chargers
SAMSUNG
SB-LH82


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I : Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II : Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show for you the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. "Status" LED indicator show RED when the Charger is ready and "Charge" LED indicator show flashing GREEN when waiting for battery pack.
4. Silde battery pack into the charger and "Charge" LED indicator turns RED when charging.
5. "Charge" indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%
6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out and unplug power.

User Manual

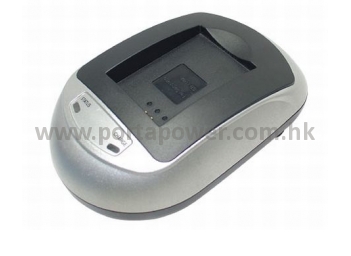

Charger Base
AVMP
Charger Base
Size: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

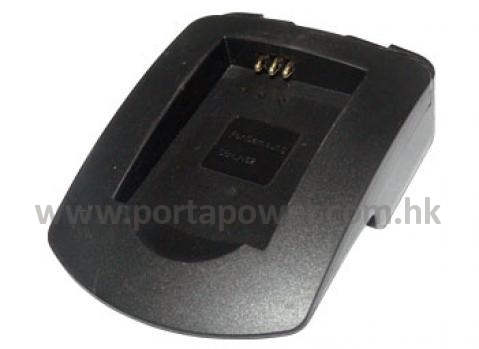

Charger Plate
AVP882
Charger Plate
Size: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
CAMP
Adaptor
Size: 84.35 x 26.16 x 19.98 mm
Weight: 34.5 g
Input Voltage: 12 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1170 mm
Safety Requirements: --
AVMPA
Adaptor
Size: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Size: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Size: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSJ
Adaptor
Size: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Size: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Size: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Size: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Size: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Size: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for choice
Product Code Descriptions
AVMP882A AVMP + AVP882 + CAMP + AVMPA
AVMP882AZ AVMP + AVP882 + AVMPA
AVMP882E AVMP + AVP882 + CAMP + AVMPE
AVMP882EZ AVMP + AVP882 + AVMPE
AVMP882K AVMP + AVP882 + CAMP + AVMPK
AVMP882SJ AVMP + AVP882 + CAMP + AVMPSJ
AVMP882SJZ AVMP + AVP882 + AVMPSJ
AVMP882KZ AVMP + AVP882 + AVMPK
AVMP882P AVMP + AVP882 + CAMP
AVMP882SA AVMP + AVP882 + CAMP + AVMPSA
AVMP882SAZ AVMP + AVP882 + AVMPSA
AVMP882SE AVMP + AVP882 + CAMP + AVMPSE
AVMP882SEZ AVMP + AVP882 + AVMPSE
AVMP882SK AVMP + AVP882 + CAMP + AVMPSK
AVMP882SKZ AVMP + AVP882 + AVMPSK
AVMP882SU AVMP + AVP882 + CAMP + AVMPSU
AVMP882SUZ AVMP + AVP882 + AVMPSU
AVMP882U AVMP + AVP882 + CAMP + AVMPU
AVMP882UZ AVMP + AVP882 + AVMPU
Standard
Standard A
Dimension: 180.00 x 112.00 x 65.00 mm
Weight: 79 g
Standard B
Dimension: 25.00 x 60.00 x 80.00 mm
Weight: 7.1 g
Optional
Optional A
Dimension: 108.00 x 69.00 x 170.00 mm
Weight: 39.5 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional B
Dimension: 237.00 x 157.00 x 105.00 mm
Weight: 65.8 g
Remark : For Full Set "Charger Base + Charger Plate + AC Adapter + Card Cord"
Optional C
Dimension: 74.00 x 44.00 x 112.00 mm
Weight: 17.4 g
Remark : For Charger Plate
